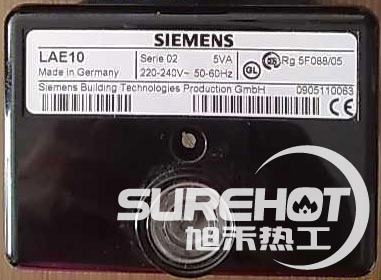

西門子LAE10
優惠活動： 8 折
免費咨詢：400 6789 872
為什么選擇旭禾熱工
-
1
電話購買
-
2
貨到付款
-
3
正規代理
-
4
保證原裝
-
5
電話購買
西門子LAE10產品介紹
產品資料表 -- 西門子LAE10
shutdown is required every 24 hours. The LAE10 is designed for the supervision of oil flames in connection with selenium photocell detectors RAR... Flame safeguards are used primarily in conjunction with the LEC1 burner control on the following applications:
- Dual-supervision of burners: Supervision of the main flame or of the pilot and main flame by two identical or different types of flame detectors
- Supervision of forced draught oil / gas burners: Supervision of the flame with different types of detectors, depending on the operating mode
- Multi-flame supervision: Plants with several burners whose flames must be supervised individually by one or several detectors, whose startup and supervision, however, should or must be carried out centrally and simultaneously by only one burner control
- The flame safeguards can also be used in connection with other types of burner controls provided the given combination and selected circuitry do not impair the burner control’s safety functions
- The flame safeguards are also used as flame indication units in combustion plant with manual startup
技術參數
| 主要參數 |
| 主電壓 |
AC220V -15%...AC240V +10% |
| AC100V -15%...AC1100V +10% |
| 主頻率 |
50...60Hz ±6% |
| 外部保險絲 |
10A |
| 功率 |
4.5VA |
| 端口額定電流 |
2A |
| 保護等級 |
IP40 |
| 重量（不含底座） |
305g |
|
| 環境條件 |
| 運輸環境 |
IEC 60 721-3-2 |
| 內部條件 |
class 2K2 |
| 機械條件 |
class 2M2 |
| 溫度范圍 |
-20...+60ºC |
| 濕度 |
<95% |
| 運行環境 |
IEC 60 721-3-3 |
| 內部條件 |
class 3K5 |
| 機械條件 |
class 3M2 |
| 溫度范圍 |
-20...+60ºC |
| 濕度 |
<95% |
| 不得進水 |
|
技術參數 -- 西門子LAE10
用于間歇運行燃燒器的火焰安全監測。
輸出類型：2 個SPST
LAE10...配接RAR...火焰探測器監測燃油火焰（連接電纜長度Max.20m）
LFE10...配接QRA...或離子棒火焰探測器監測燃?xì)饣鹧婊蛩{(lán)色燃油火焰（連接電纜長度Max.20m）
參數說明 -- 西門子LAE10
暫無
